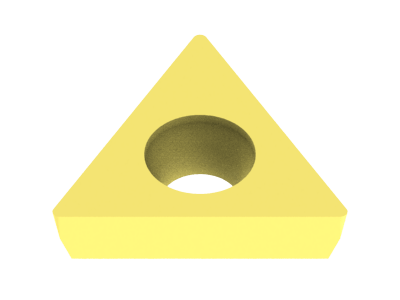

Indexable Insert

Order Code:

TPHW 16T304 FN DX20

(Corresponding ANSI size: TPHW 32.51)

Tungsten Carbide – Substrate
FN – Geometry
DX20 – Grade

Turning
P
M
K
N
S
H

0.01 mm - 7 mm – ap
0.0004" - 0.2756" – DOC

Milling
P
M
K
N
S
H

0.01 mm - 15 mm – ap
0.0004" - 0.5906" – DOC

Go back

All technology data are recommendations. Relevant know-how in the proper handling of cutting tools is not replaced by this platform. Feed rate and cutting depth must be chosen so that the chip section does not exceed a value that could damage the tool or machine and also pays enough attention to the stability of the tool and clamping.
